ACME/ Trapezoidal Screws
These precision-engineered screws are ideal for applications requiring smooth and accurate linear motion. We leverage ACME/trapezoidal screws to enhance automation, offering precise positioning in CNC machinery, 3D printers, and robotic arms, ensuring clients achieve unparalleled control and efficiency.
Levelling Jacks – Power Screw Based
- Max Stroke
- : 400-600 mm
- Max Load Capacity
- : 300 kN
- Max Linear Speed
- : 2-5 mm /sec
- Min Accuracy
- : ±0.05 mm
- IP Protection
- : IP 65
- Supply Voltage
- : 3Phase, 415V, 50Hz
Note: Jack design can be customized as per the required stroke and load requirements
Roller screw option can be customised
Indigenously Manufactured Recirculating Ball Screw
Ball Screws
Our ball screws are the epitome of precision and reliability in linear motion systems. Widely used in aerospace and automotive industries, we employ Ball Screws to optimize aircraft control surfaces, automobile steering systems, and high-precision manufacturing equipment, ensuring exceptional performance and longevity. We design, engineer and manufacture ball screws as per customer requirements and are one of the few companies in India which has an integral design and manufacturing facility.
- Diameter range
- : From 8 mm to 150 mm
- Pitch range
- : From 1.5 mm to 40 mm
- Length
- : Up to 5000 mm in certain cases
- No. of starts
- : Single or double start
- Material of construction
- : SAE 4140, SS440C and 17- 4 PH
In House Designed And Manufactured Planetary Roller Screw Nut (PRSN) Assembly
Roller Screws
Our roller screws are the pinnacle of heavy-duty linear motion solutions. Employed in challenging environments such as steel mills and mining operations, these screws deliver unmatched durability and precision, guaranteeing clients increased productivity and reduced downtime. We design, engineer and manufacture roller screws as per customer requirements and are the only team in India which does indigenous design and manufacturing of roller screws.
- Diameter range
- : From 8 mm to 150 mm
- Pitch range
- : From 1.5 mm to 40 mm
- Length
- : Up to 5000 mm in certain cases
- No. of starts
- : Up to 6 starts
- Material of construction
- : SAE 4140 and SS440C
Gearboxes
We build a range of both Conventional Gearboxes as well as Planetary Gearboxes. Our Conventional Gearboxes offer robust power transmission solutions for various industrial applications. We customize these gearboxes for manufacturing plants, offering efficient speed reduction and torque multiplication, thus enhancing production processes and machinery performance.
For applications demanding high torque and large speed reduction together with a compact design, our planetary range of gearboxes offer the right type of solution. In robotics and automation, we harness the exceptional torque-to-size ratio of these gearboxes to achieve precise and efficient motion control, enabling agile and versatile robotic systems. Our innovative approach ensures these gearboxes seamlessly integrate into clients' specialized equipment, achieving unparalleled functionality and efficiency.
Conventional & Planetary Gearboxes
- Torque Range
- : 10 Nm to 1600 Nm
- Ratio
- : Customised gear ratio as per the requirement: 2-5 mm /sec
Multi input – multi output gear boxes
Motors And Drives
We manufacture and build a wide range of Electric Servo Motors with matched Drives and Electronic Controls. Our range of motors includes PMDC as well as BLDC, PMSM and Asynchronous types of motors.
We also build Direct Drive motors which include Hub motors of Axial/Radial Flux type of Motors and Linear Electric Motors. Our motors find wide applications in diverse areas such defense and aerospace, robotics and industrial and commercial applications to name a few.
Linear Electrical Motors
We transform Linear Electrical Motors into precision linear motion solutions for tasks like pick-and-place systems, elevators, and aerospace components, delivering high-speed and high-accuracy movement for diverse industries.
Electro-Mechanical Actuators
Our electro-mechanical linear actuators are the cornerstone of precise linear motion in applications such as packaging machinery, aerospace, and material handling systems, offering robust and dependable performance.
In house Manufactured Telescopic Ball Screw providing compact solutions for confined spaces
- Diameter range
- : From 8 mm to 150 mm
- Pitch range
- : From 1.5 mm to 40 mm
- Length
- : Up to 5000 mm in certain cases
- No. of starts
- : Up to 6 starts
- Material of construction
- : SAE 4140 and SS440C
Telescopic Ball screw
Heavy Duty Indigenous Planetary Roller Screw/Power Screw/Ball screw based Electromechanical Actuator
- Max Stroke
- : 1500 -2000 mm
- Max Load Capacity
- : 700 kN
- Max Linear Speed
- : 15-20 mm /sec
- Min Accuracy
- : ±0.05 mm
- IP Protection
- : IP 65
- Type of motor
- : BLDC
- Feedback
- : Multi- turn/Single Absolute/Incremental Encoder
- Encoder Interface
- : SSI, Quadrature
- Drive
- : Miniature Intelligent high precision motor controller for a wide range
- Supply Voltage
- : 415V, 3Phase, 50Hz
- Control
- : Closed loop position and velocity control
- Communication Interface
- : CAN, RS232
Medium Duty Indigenous Planetary Roller Screw/Ball screw based Electromechanical Actuator
- Max Stroke
- : 500-600 mm
- Max Load Capacity
- : 5-10 kN
- Max Linear Speed
- : 75-100 mm /sec
- Min Accuracy
- : ±0.05 mm
- IP Protection
- : IP 65
- Type of motor
- : BLDC/PMDC
- Feedback
- : Single/Multi- turn Absolute/Incremental Encoder
- Encoder Interface
- : BISS- C, SSI, SPI, PWM, Quadrature
- Drive
- : Miniature Intelligent high precision motor controller for a wide range of operation
- Supply Voltage
- : 24VDC – 60VDC
- Control
- : Closed loop position and velocity control
- Communication Interface
- : USB, CAN, RS232

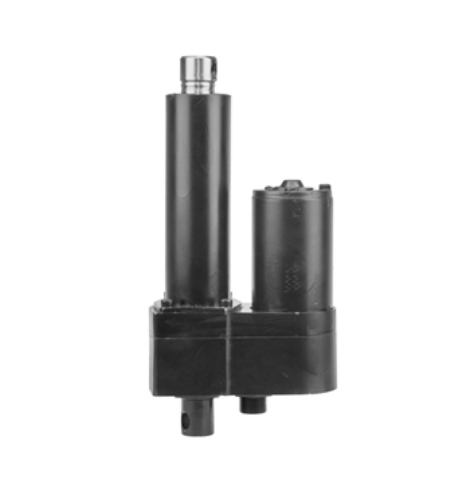

Light Duty Indigenous Planetary Roller Screw/Ball screw based Electromechanical Actuator
- Max Stroke
- : 100-500 mm
- Max Load Capacity
- : 1-5 kN
- Max Linear Speed
- : 75-100 mm /sec
- Min Accuracy
- : ±0.05 mm
- IP Protection
- : IP 65
- Type of motor
- : BLDC/PMDC
- Integrated Drive
- : YesC
- Feedback
- : Single/Multi- turn Absolute/Incremental Encoder
- Encoder Interface
- : BISS- C, SSI, SPI, PWM, Quadrature
- Drive
- : Miniature Intelligent high precision motor controller for a wide range of operation
- Supply Voltage
- : 24VDC – 60VDC
- Control
- : Closed loop position and velocity control
- Communication Interface
- : USB, CAN, RS232
Electro-Mechanical Rotary Actuators
For applications requiring precise rotary motion, our electro-mechanical rotary actuators shine. We adapt these actuators to robotics, aerospace, and automation, providing clients with versatile and reliable solutions.
- Input Voltage Range
- : 24-50VDC
- Rated power
- : upto 380w
- Nominal Output Speed
- : upto 50RPM
- Nominal Torque
- : upto 50Nm
- Peak Torque
- : Upto 100NM
- Emergency Peak Torque
- : upto 170Nm
- Rated Life
- : more than 10000hrs
- Weight
- : 1.5kg max
- Dimensions
- : 120 (L) x 115 (D)
- Application
- : Robotic joints for Manipulator, robotic quadrupeds, humanoid joints.
Direct Drive LEM-Based Actuators
Direct drive linear electrical motor actuators redefine motion control in applications like precision manufacturing and semiconductor processing. We integrate these actuators for clients seeking unmatched speed, accuracy, and responsiveness.
-
Special-Purpose, Servo-Controlled Motion Platforms
We design specialized, servo-controlled motion platforms for industries ranging from entertainment to aerospace, allowing clients to achieve precise, dynamic, and immersive motion experiences in their applications.
-
Payload Positioning And Deployment Systems
Our payload positioning and deployment systems are vital for space exploration and satellite deployment. Our innovative solutions ensure accurate payload deployment in critical missions.
-
Payload Erection And Traverse Systems
Our payload erection and traverse systems are tailored for applications like construction and heavy industry, enabling efficient and safe movement and positioning of heavy payloads with precision and ease.
-
Platform Leveling And Stabilization Systems
In industries such as defense, aerospace construction and photography, our platform leveling and stabilization systems offer unparalleled stability and control, ensuring clients capture the perfect shot or complete tasks with precision.
-
Motion Simulation Systems
Our motion simulation systems provide realistic training environments for pilots, drivers, and operators in the aerospace and automotive sectors, enhancing safety and proficiency through immersive experiences.
-
Slewing, Tracking, Pointing & Orientation Systems
For applications requiring precise orientation and tracking, our solutions excel. From telescopes to radar systems, we empower clients with unparalleled accuracy and reliability.
-
Medical Applications
Hospital beds, MRI scan, Surgical and procedural equipment, imaging and treatment equipment , dental care equipment, rehabilitation and fitness equipment
